EcoChatger-360 Series

Dual energy integration:
The EcoCharger 360 realizes the efficient conversion and utilization of two renewable energy sources by integrating wind and solar technologies. This dual-energy integration design not only improves the stability of energy supply, but also intelligently adjusts to different environmental conditions to maximize energy capture and utilization efficiency.
Intelligent energy storage systems:
The product is equipped with an advanced energy storage system that can store excess power for emergencies when wind and solar energy are plentiful. This intelligent energy storage solution ensures a stable power supply at night or when energy is scarce.
Versatile application scenarios:
The versatility of the EcoCharger 360 makes it suitable for a wide range of application scenarios, including home power, communication base stations, temporary power supply, agricultural irrigation, and emergency relief. This wide range of applicability makes the EcoCharger 360 an ideal energy solution for a variety of environments.
Intelligent management and maintenance:
The product is equipped with an intelligent monitoring system, which allows users to remotely monitor energy production and consumption, and realize fault warning and system maintenance. This intelligent management not only improves the reliability of the system, but also reduces maintenance costs, providing users with a more convenient and safer experience.

EcoChatger 360

The EcoCharger 360 is the latest innovative energy solution from the Huijue Group that integrates wind and solar technologies, converting both renewable energy sources into electricity for domestic and commercial use. The system is not only capable of powering everyday appliances, but also utilizes stored electricity to continue powering them when the power supply is unstable or at night. In addition, the EcoCharger 360 works seamlessly with emergency generators to ensure a steady supply of energy in any situation. It is widely used in many fields such as communication base stations, temporary power supply, agricultural irrigation, emergency rescue, medical epidemic prevention and communication exploration, making it a reliable choice for modern green energy.

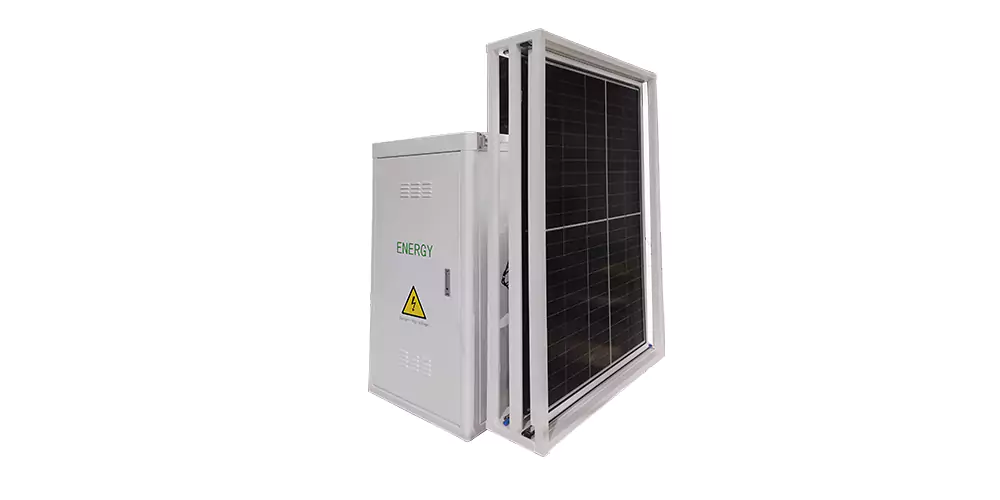

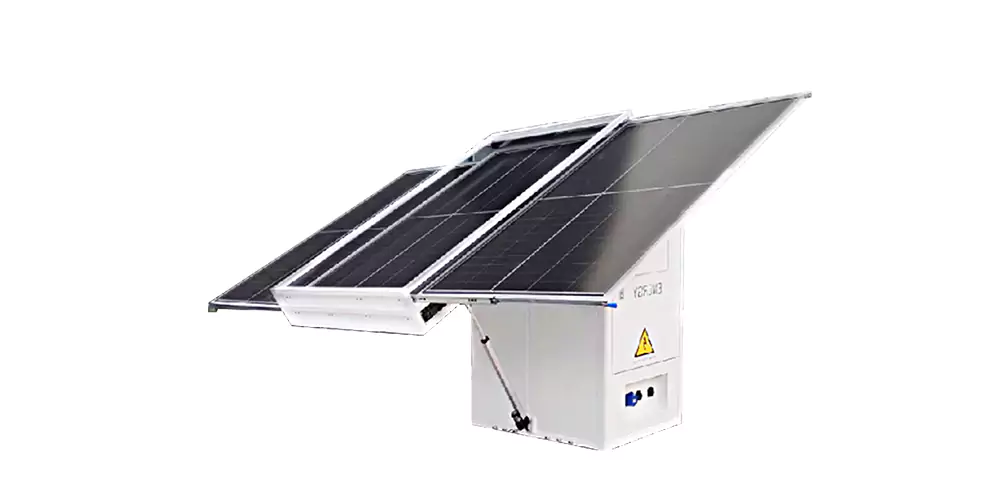

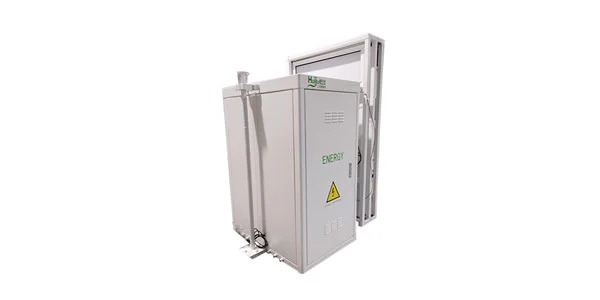

Product Pictures

Configuration Table

NO.	Product Name	Specifications	Unit	QTY	Remark	Actual Use
1	Outdoor Cabinet	16500750750mm(HWD),Cabinet frame is made of galvanized material 1.5mm, internal 20mm thick heat insulation; front and back door operation, floor mounting; divided into equipment compartment and battery compartment, 4 casters;	Pcs	1
2	Lithium Iron Battery	3U482.6420_48V/100AH_Requires configuration of front screen port and other components, neutral	Pcs	1		If needed, real batteries need to be configured, and the quantity can be 1-3 sets;
3	Temperature Control	Fan strong exhaust, DC48V, exhaust volume 300W	Pcs	1	Battery compartment
4	LED Light Strip	Bluetooth intelligent LED light strip (5M+Adapter)	set	1	Decorative lights	Optional
5	Monitor System	Monitoring mainframe (with display screen),APP-operable;	set	1		Optional
6	Wind Turbine	Power 600W, 48V system, starting wind speed 2.5m/s, rated wind speed 11m/s,Three-phase AC permanent magnet generator, wind turbine diameter of 1.85 meters	Pcs	1	Wind turbine components	Optional
7	Fan Controller	1. Specification: 600W, MPPT controller adopts impedance matching adaptive, maximizing energy utilization; 2. Fan overcurrent limit, intelligent maximum battery current limit, RS485 serial communication; 3. Working voltage: 48V, working temperature -20 ℃~55 ℃. 4. Equipped with a resistor unloader.	Pcs	1
8	Tower	Matching 600W fan, cable tower 4m	Pcs	1
9	PDU	6 Positions, 10A GB, 19″ Mounting, With Switch, 3 Meter Cable	Pcs	1
10	PV Inverter	3KW, off-grid type, AC 220V input & PV DC input; output AC220V; low voltage 48V for energy storage system.	Pcs	1
11	Lighting - Inside Cabinet	T5 LED/DC48V (LED type)	Pcs	1
12	Fire Protection System	Thermal Aerosol Fire Extinguisher QRR0.1G/S-Q- and Andon, Thermal Line 1.5m, Feedback Line 0.5m	Pcs	1	Fire protection inside the cabinet
13	Photovoltaic Panel	P-type, 405W, monocrystalline silicon, single panel: 1754109630MM Open circuit voltage 41.2V, open circuit current 12.3A	Pcs	3		Optional
14	Cameras	DH-IPC Dahua HD 2 million infrared 1080P hemispherical network camera	Pcs	1	Optional
16	Electrical Box	Configure input switches, interfaces, meters, output switches, etc	Pcs	1
17	Photovoltaic Converter Bracket Device	Purchase aluminum alloy frame, pull-out type, can install up to 3 photovoltaic panels, photovoltaic panel flipping mechanism, electric push rod 400KG, 24V	Pcs	1
18	Diesel Generator	Model, sheet metal shell, size 750X 700X 400mm, single-phase 32A oil engine plug socket

Product Features

Efficient Energy Conversion: Adopts the latest photovoltaic and wind power generation technologies to maximize energy conversion efficiency.
Multiple Energy Inputs: Supports multiple energy inputs such as solar, wind and utility power, ensuring a diverse and stable energy supply.
Portable design: Compact system design, easy to transport and install, suitable for various environments and occasions.
Space Optimization: Intelligent integrated design saves space, suitable for energy deployment in limited space.
High Performance Guarantee: High-quality materials and components are selected to ensure the system's high performance and durability under various climatic conditions.
Intelligent management: Equipped with an intelligent monitoring system, it realizes remote monitoring and fault warning to improve the reliability and safety of the system.

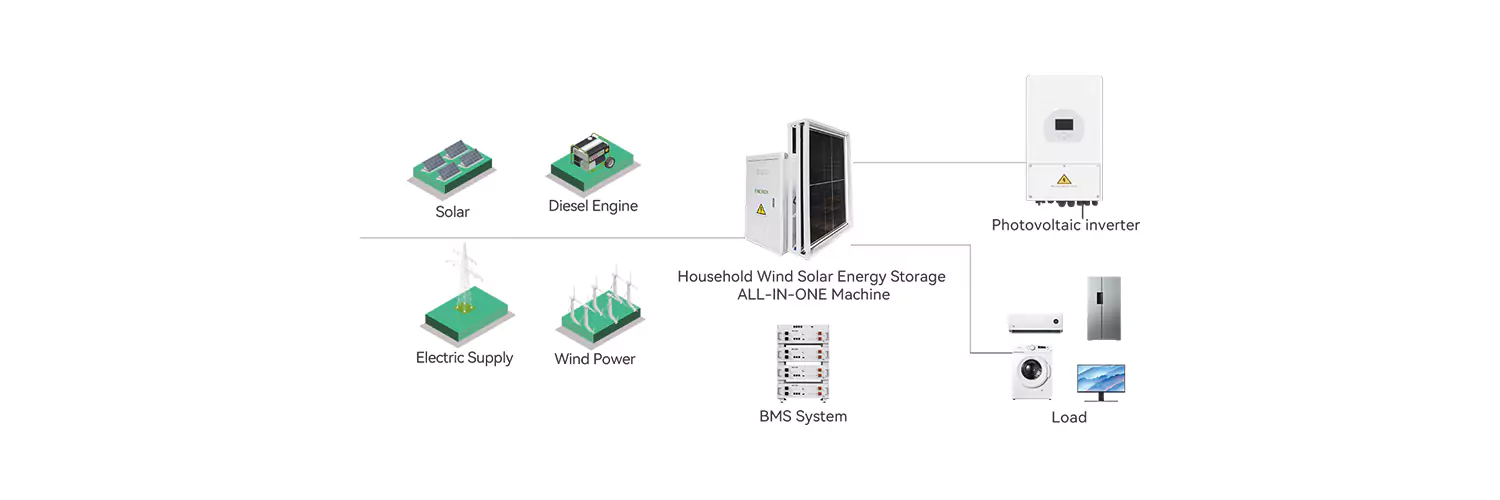

Green Energy Access Schematic.

Green Energy Access Schematic
