HJ-SG-Xx twoX

Introduction:

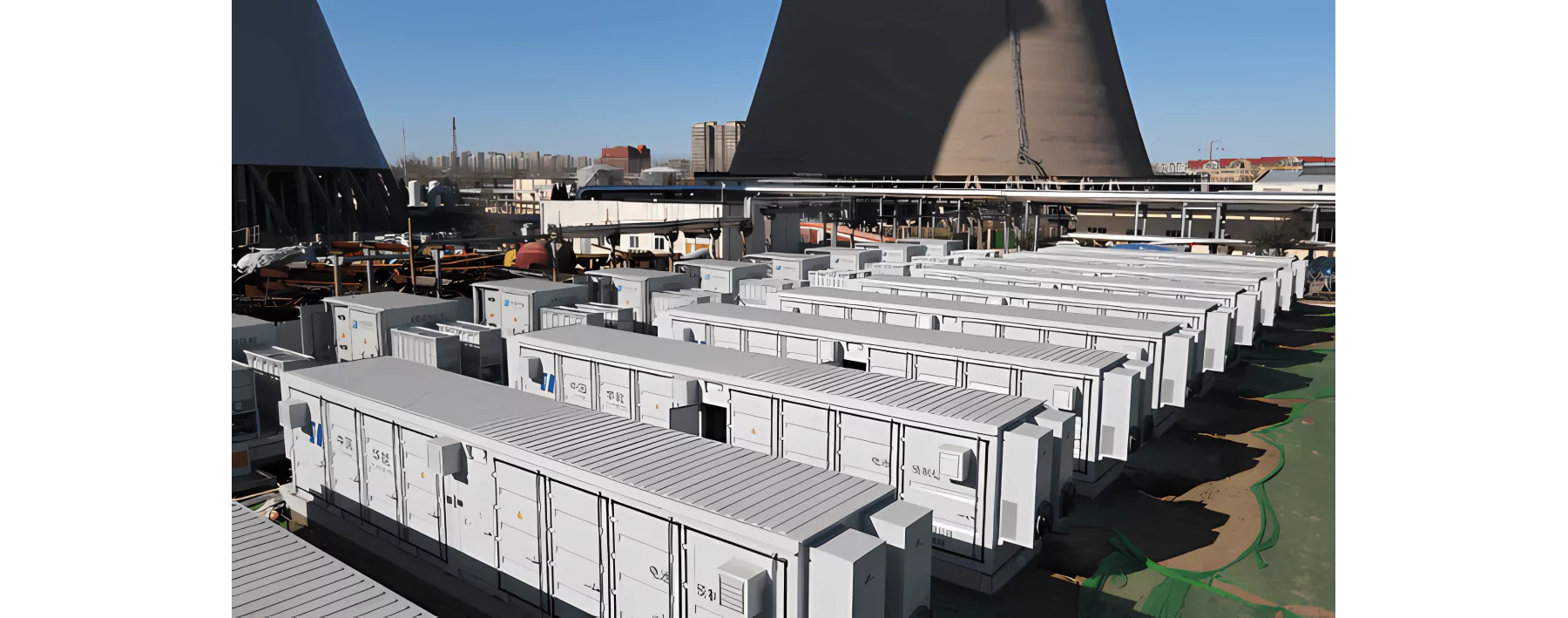

The energy storage container solution provided by the Huijue Group is available in 10, 20, and 40-foot prefabricated units. Each container would house an integrated system inside with energy storage batteries, management systems, monitoring systems, temperature control, and fire safety at megawatt-level power output. The solution will adopt battery clusters as the basic unit and make provisions at several points to meet various voltage and capacity demands. It perfectly coordinates with photovoltaic, wind, and thermal power systems to further improve the utilization of new energy sources, output smoothing, peak shaving, and valley filling. Besides, for frequency regulation and peak management, it serves as an important component in the whole process of energy distribution, transmission, and consumption.

Features:

1. Modular Design:
   The modular structure allows for flexible capacity matching of battery packs, with various types of PCS power options available.
2. High-Performance Lithium Iron Phosphate Battery:
   This advanced lithium iron phosphate battery offers an extended cycle life, achieving efficiencies of up to 90% with both active and passive balancing features.
3. Flexible operating mode:
   Supports both on-grid and off-grid operation modes, enabling seamless transitions and a range of auxiliary functions for enhanced adaptability.
4. Integrated system:
   A comprehensive system management unit encompasses energy management, battery management, and thermal management. The intelligent monitoring platform includes features for fire protection, alarms, and temperature and humidity detection.

Application:

The solution will highly benefit many sectors involved in industrial operations, mining sites, border security posts, and construction projects. It effectively supports emergency rescue missions by offering reliable energy backup and flexible operational capabilities.

Parameters List:

Structures:
